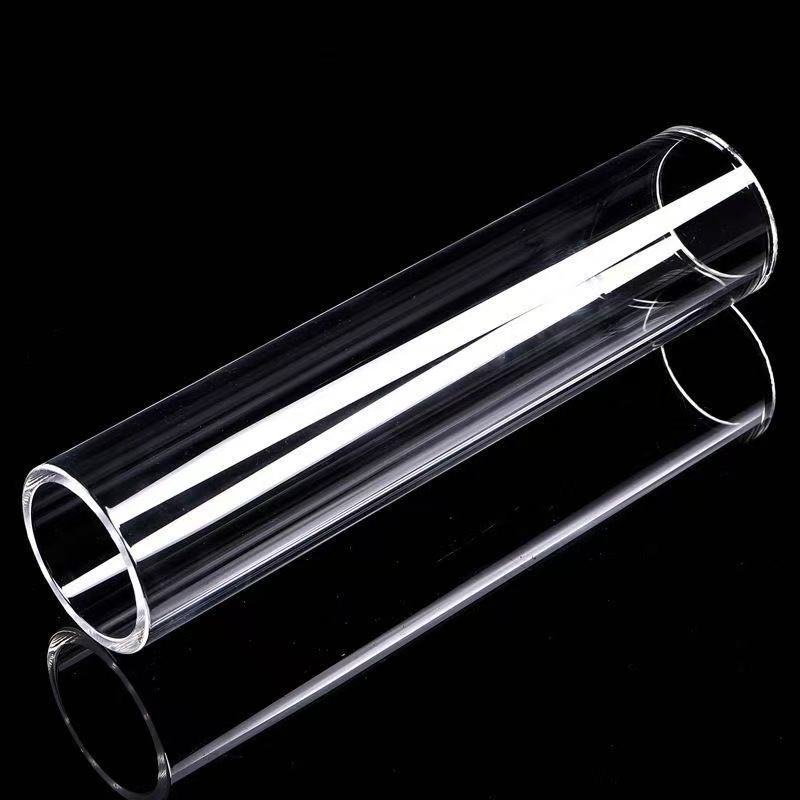

Clear Fused Quartz Tubes
Introduction
Clear fused quartz tubes are widely used in industries where thermal stability, optical clarity, chemical resistance, and dimensional precision are critical. Compared with conventional glass tubing, fused quartz maintains excellent performance under continuous high-temperature operation while offering extremely low thermal expansion and outstanding resistance to thermal shock.
These characteristics make clear fused quartz tubes an essential component in semiconductor processing equipment, photovoltaic manufacturing systems, laboratory instruments, UV applications, analytical equipment, and numerous custom industrial assemblies. Whether used as process tubes, protective sleeves, reactor components, or optical housings, quartz tubing provides reliable performance in demanding operating environments.
At GKLQuartz, we manufacture clear fused quartz tubes in a wide range of dimensions and offer complete machining and fabrication services. From standard tubing to complex custom assemblies produced from customer drawings, our manufacturing process is designed to meet the dimensional and performance requirements of industrial equipment manufacturers, research laboratories, and engineering companies worldwide.
What are Clear Fused Quartz Tubes?
Clear fused quartz tubes are transparent cylindrical tubes manufactured from high-purity fused silica. Unlike conventional borosilicate or soda-lime glass, fused quartz is produced by melting high-purity silica at extremely high temperatures, resulting in a material with exceptional thermal, optical, and chemical properties.
Because the material contains very low levels of impurities and exhibits excellent stability across a broad temperature range, clear fused quartz tubes are frequently selected for applications where contamination control, dimensional stability, and long service life are essential.
One of the defining characteristics of fused quartz is its remarkably low coefficient of thermal expansion. This property allows quartz tubes to withstand rapid temperature changes without cracking, making them suitable for repeated heating and cooling cycles in industrial furnaces and laboratory equipment.
Another important advantage is optical transmission. Clear fused quartz allows excellent transmission from ultraviolet through visible wavelengths into portions of the infrared spectrum, making it an ideal material for UV sterilization systems, analytical instruments, optical devices, and specialized lighting equipment.
Unlike many engineering materials, fused quartz also demonstrates outstanding resistance to most acids and chemical environments, except hydrofluoric acid and strong alkaline solutions. This combination of chemical stability and thermal resistance significantly extends service life in demanding industrial processes.
Depending on the application, quartz tubes may serve as:
Furnace process tubes
Diffusion tubes
Reactor tubes
Lamp envelopes
Protective sleeves
Sight glass assemblies
Laboratory reaction vessels
Sample holders
Optical housings
Precision mechanical components
Modern semiconductor and photovoltaic production lines rely heavily on quartz components because they minimize contamination while maintaining stable performance during repeated thermal processing.
Applications and Industries
Clear fused quartz tubes are used across numerous industries where conventional glass or ceramic materials cannot provide sufficient thermal performance, purity, or dimensional stability. Their versatility allows engineers to integrate quartz tubing into both standard equipment and highly customized manufacturing systems.
Semiconductor Manufacturing
Semiconductor fabrication is one of the largest application areas for fused quartz tubing. During diffusion, oxidation, LPCVD, PECVD, and other wafer processing operations, process temperatures often exceed the operating limits of conventional glass.
Quartz tubes are commonly used as:
Diffusion furnace tubes
Process chamber liners
Wafer handling components
Thermal oxidation equipment
Protective sleeves
Gas delivery assemblies
Because semiconductor manufacturing requires extremely clean processing environments, material purity and stable fabrication quality are essential considerations when selecting quartz components.
Solar Photovoltaic Industry
Solar cell manufacturing also depends heavily on fused quartz products. Quartz tubes are incorporated into diffusion furnaces, thermal processing systems, and high-temperature production equipment used throughout photovoltaic manufacturing.
Typical applications include:
Diffusion furnace tubes
Thermal process chambers
Heating assemblies
Protective process liners
High-temperature reactor systems
The excellent thermal stability of fused quartz helps maintain process consistency while reducing maintenance frequency.
Laboratory and Scientific Research
Research laboratories require materials capable of handling corrosive chemicals, elevated temperatures, and repeated thermal cycling.
Clear fused quartz tubes are widely used for:
Chemical reaction systems
Sample preparation
Analytical instruments
Vacuum experiments
Spectroscopy equipment
High-temperature testing
Research reactors
The optical transparency of quartz also allows researchers to visually monitor reactions while maintaining chemical compatibility.
UV and Optical Equipment
Because fused quartz transmits ultraviolet light far more efficiently than ordinary glass, it is commonly selected for UV-based systems.
Applications include:
UV sterilization equipment
Water treatment systems
UV curing equipment
Mercury lamp protection
Optical measurement devices
Scientific lighting systems
Excellent optical performance combined with thermal durability makes quartz tubing particularly suitable for long-term UV exposure.
Industrial Heating Equipment
Industrial furnaces operating at elevated temperatures often incorporate quartz tubing as structural or protective components.
Examples include:
Tube furnaces
Heat treatment equipment
Annealing systems
Thermal processing equipment
High-temperature reactors
The material's resistance to deformation helps maintain stable operation over prolonged production cycles.
Chemical Processing
Many chemical production environments expose equipment to aggressive media and elevated temperatures. Quartz tubes provide excellent resistance to most acids and maintain structural integrity under demanding process conditions.
Applications include:
Chemical reactors
Gas handling systems
Protective process sleeves
Sampling equipment
Corrosion-resistant tubing
Analytical and Environmental Equipment
Precision analytical instruments often require chemically stable transparent tubing that does not interfere with sensitive measurements.
Quartz tubes are frequently integrated into:
Gas analyzers
Environmental monitoring equipment
Spectrometers
Chromatography systems
Scientific instrumentation
OEM Equipment Manufacturing
Equipment manufacturers frequently require custom quartz tubing rather than standard stock sizes. Depending on the design, tubes may include precision-machined ends, welded joints, flanges, slots, holes, or complex fabricated assemblies.
By manufacturing according to engineering drawings, OEM suppliers can integrate quartz components directly into complete equipment while maintaining dimensional consistency across production batches.
Technical Specifications
The specifications of clear fused quartz tubes vary depending on the application, equipment design, and installation requirements. While standard sizes are available for many industrial uses, most semiconductor, photovoltaic, laboratory, and OEM customers require customized dimensions and machining features.
GKLQuartz manufactures clear fused quartz tubes in both standard and custom configurations. Tubes can be supplied with precision-cut ends, polished surfaces, ground edges, machined openings, welded assemblies, and other value-added fabrication processes according to customer drawings.
The following specifications represent our general manufacturing capability. Customized dimensions and tolerances are available upon request.
| Property | Description |
|---|---|
| Material | Clear fused quartz (high-purity fused silica) |
| Purity | High-purity fused silica suitable for industrial and scientific applications |
| Outside Diameter (OD) | Custom sizes available, production range: 5mm–1000mm |
| Inside Diameter (ID) | Manufactured according to customer requirements |
| Length | Standard and custom lengths available, production range: 10mm–3000mm |
| Wall Thickness | Thin-wall and thick-wall configurations, production range: 1mm–20mm |
| Temperature Resistance | Softening point ~1730°C, max continuous use 1100°C, short-term peak 1450°C |
| Surface Finish | Fire-polished, ground, polished, or precision machined |
| End Configuration | Open, closed, beveled, flanged, or customized |
| Tolerance | Produced according to drawing requirements and application needs |
| Fabrication Options | Cutting, drilling, slotting, CNC machining, welding, polishing, bending, cleaning |
| Custom Options | Drawing-based manufacturing, prototype development, OEM production, assembled quartz components |
Every application has different mechanical and thermal requirements. For example, laboratory equipment may prioritize optical clarity and dimensional accuracy, while semiconductor equipment often requires tight machining tolerances and contamination control. Our engineering team reviews each drawing individually to recommend the most appropriate manufacturing process.
In addition to straight tubes, we also manufacture fabricated quartz assemblies that integrate multiple processing techniques into a single component. This reduces the need for secondary processing and simplifies equipment assembly for OEM customers.
Manufacturing Capability
Producing precision quartz tubes involves much more than simply cutting raw tubing. The performance of the finished component depends on material selection, machining accuracy, thermal processing, surface quality, and final inspection. Our manufacturing process combines traditional quartz craftsmanship with precision machining to produce components suitable for demanding industrial environments.
Precision Cutting
Accurate tube length is the foundation of every quartz component. We use dedicated cutting equipment to produce clean, square tube ends while minimizing edge defects.
Depending on the project, tubes may be cut to standard production lengths or manufactured according to customer drawings. Special lengths for laboratory instruments, furnace systems, and OEM equipment are routinely produced.
After cutting, every component is inspected before moving to subsequent machining operations.
Grinding
Grinding improves dimensional accuracy and prepares surfaces for further processing or assembly.
Typical grinding operations include:
End face grinding
Diameter correction
Surface refinement
Flatness improvement
Edge preparation
This process is particularly important for quartz components that will be joined with metal assemblies or installed in precision equipment where dimensional consistency is required.
Polishing
Surface finish directly influences both optical performance and mechanical reliability.
Depending on the application, quartz tubes can be supplied with:
Fire-polished surfaces
Mechanical polishing
Optical polishing
End-face polishing
A properly polished surface reduces surface defects that may become stress concentration points during thermal cycling. For optical and laboratory applications, polishing also improves light transmission and overall appearance.
CNC Machining
Many industrial applications require features that cannot be achieved using standard tubing alone.
Our CNC machining capability allows the production of complex geometries, including:
Precision holes
Slots
Grooves
Threads (where applicable)
Counterbores
Stepped diameters
Special mounting features
These machining operations enable quartz tubes to integrate directly into sophisticated equipment without requiring additional modification by the customer.
For OEM equipment manufacturers, CNC machining reduces assembly time while improving dimensional consistency across production batches.
Quartz Welding and Fabrication
Quartz welding is one of the most important manufacturing capabilities for producing complex quartz assemblies.
Using hydrogen-oxygen flame processing, experienced technicians join individual quartz components into complete assemblies while maintaining excellent transparency and structural integrity.
Typical fabrication includes:
Tube-to-tube welding
Tube-to-flange welding
Tube-to-plate assemblies
Multi-component structures
Reactor assemblies
Furnace components
Laboratory apparatus
Custom fabricated assemblies often replace multiple individual parts, simplifying installation and reducing assembly complexity.
Cleaning
Surface cleanliness is critical for semiconductor, optical, laboratory, and analytical applications.
Following fabrication, components undergo appropriate cleaning procedures to remove machining residues and processing contaminants before packaging.
Depending on customer requirements, cleaning processes may include:
Ultrasonic cleaning
Deionized water rinsing
Particle removal
Surface inspection
Protective packaging
Proper cleaning helps ensure that quartz components arrive ready for integration into sensitive manufacturing or research environments.
Complete Manufacturing Workflow
Every project follows a structured production process designed to ensure dimensional consistency and reliable quality.
Our typical workflow includes:
Engineering drawing review
Material selection
Tube cutting
Precision grinding
CNC machining (if required)
Quartz welding and assembly
Surface polishing
Cleaning
Dimensional inspection
Packaging and shipment
This integrated manufacturing approach enables us to support both prototype development and volume production while maintaining consistent quality throughout the production process.
Why Choose Our Clear Fused Quartz Tubes?
Selecting a quartz tube supplier involves more than comparing dimensions or material specifications. For industrial equipment manufacturers, consistent manufacturing quality, fabrication capability, and reliable technical communication are equally important.
Rather than supplying only standard quartz tubing, we focus on producing engineered quartz components that meet the functional requirements of each application.
Engineering-Oriented Manufacturing
Every project begins with a review of the customer's drawings and application requirements. By understanding the operating environment, assembly method, and dimensional tolerances, we can recommend suitable manufacturing processes before production begins.
This approach helps reduce unnecessary revisions and improves manufacturing efficiency.
Extensive Fabrication Capability
Many suppliers only provide standard quartz tubes.
Our manufacturing capability extends beyond tubing production to include precision machining, quartz welding, polishing, drilling, slotting, and complete fabricated assemblies.
Customers can source finished components instead of coordinating multiple suppliers for machining and assembly.
Support for Low and High Volume Production
Whether developing a new laboratory instrument or producing components for industrial equipment, production requirements vary significantly.
We support:
Prototype samples
Small production batches
Engineering validation
Pilot production
Long-term OEM manufacturing
This flexibility allows customers to scale production while maintaining consistent specifications.
Consistent Dimensional Control
Dimensional consistency is particularly important for equipment requiring interchangeable components or automated assembly.
By combining experienced technicians with precision manufacturing equipment, we strive to maintain repeatability throughout successive production batches, helping reduce installation issues and improving production efficiency for our customers.
Reliable Communication Throughout the Project
Successful custom manufacturing depends on clear technical communication.
Our team works closely with customers during quotation, drawing review, production, and shipment to ensure manufacturing requirements are fully understood before production begins.
This collaborative process minimizes misunderstandings and contributes to more efficient project execution.
Custom Quartz Solutions
No two industrial applications are exactly alike. While standard quartz tubes are suitable for many general-purpose systems, semiconductor equipment, laboratory instruments, photovoltaic production lines, and OEM machinery often require custom dimensions, machining features, or fully fabricated quartz assemblies.
GKLQuartz specializes in manufacturing clear fused quartz tubes according to customer drawings, technical specifications, or sample parts. From a simple cut-to-length tube to a complex welded assembly with multiple precision-machined features, we work closely with customers throughout the development and production process.
Drawing-Based Manufacturing
Most custom projects begin with a technical drawing. We accept drawings in common engineering formats, including PDF, DWG, DXF, and STEP files, allowing our engineering team to review dimensions, tolerances, assembly requirements, and application details before production.
If a complete drawing is unavailable, customers may also provide:
Sample components
Hand sketches with key dimensions
3D models
Assembly drawings
Equipment photographs with dimensional references
Based on the available information, our engineers can evaluate manufacturability, recommend suitable production methods, and identify potential improvements before fabrication begins.
OEM Manufacturing
We support OEM customers requiring consistent quartz components for integration into their equipment. Whether supplying standard replacement parts or proprietary custom designs, we manufacture according to approved drawings while maintaining dimensional consistency throughout repeated production runs.
Our OEM services include:
Custom part manufacturing
Assembly production
Private labeling (if required)
Long-term production programs
Batch traceability
Stable manufacturing processes
Many of our OEM customers use quartz components in semiconductor equipment, laboratory instruments, analytical systems, UV equipment, and thermal processing machinery.
Prototype Production
Developing new equipment often requires prototype quartz components before moving into full production.
We support prototype manufacturing by producing small quantities for:
Design verification
Functional testing
Assembly evaluation
Engineering modifications
Process optimization
During prototype development, our engineering team communicates closely with customers to review machining feasibility and recommend adjustments when appropriate. This collaborative approach helps reduce redesign time and shortens the overall product development cycle.
Mass Production
Once a design has been validated, production can be scaled according to customer demand.
Our manufacturing system supports both medium and large production quantities while maintaining consistent processing methods, inspection procedures, and quality standards.
For long-term projects, we work to ensure repeatable dimensions and reliable delivery schedules, helping customers maintain stable production planning.
Whether you require dozens of components for research equipment or recurring production for industrial machinery, we aim to provide consistent manufacturing support throughout the product lifecycle.
Frequently Asked Questions
Can you manufacture quartz tubes according to our drawings?
Yes. We regularly manufacture custom clear fused quartz tubes based on customer drawings, CAD files, or sample parts. Our production capabilities include precision cutting, grinding, polishing, CNC machining, drilling, welding, and complete quartz fabrication.
What industries commonly use clear fused quartz tubes?
Clear fused quartz tubes are widely used in semiconductor manufacturing, photovoltaic production, laboratories, analytical instrumentation, UV systems, optical equipment, chemical processing, environmental monitoring, and high-temperature industrial furnaces.
What is the difference between fused quartz and ordinary glass tubes?
Compared with conventional glass, fused quartz offers significantly better thermal stability, lower thermal expansion, higher operating temperatures, improved chemical resistance, and superior ultraviolet transmission. These properties make it suitable for demanding industrial applications where standard glass cannot perform reliably.
Can you produce both standard and custom sizes?
Yes. In addition to commonly used tube sizes, we manufacture custom outside diameters, inside diameters, wall thicknesses, lengths, and special end configurations according to customer specifications.
What machining services are available?
Our fabrication capabilities include:
Precision cutting
End grinding
Fire polishing
Optical polishing
CNC machining
Hole drilling
Slot machining
Quartz welding
Assembly fabrication
Cleaning and inspection
This allows customers to source finished quartz components from a single supplier.
Can quartz tubes withstand rapid temperature changes?
Fused quartz has a very low coefficient of thermal expansion, allowing it to resist thermal shock significantly better than conventional glass. However, the suitability for rapid heating or cooling depends on the specific design, wall thickness, and operating conditions of the application.
Do you provide prototype quantities?
Yes. Prototype production is available for engineering evaluation, equipment development, laboratory testing, and new product validation before mass production.
How do you ensure product quality?
Each production order follows a structured manufacturing process that includes raw material verification, dimensional inspection, machining control, surface inspection, and final cleaning before packaging. Inspection requirements can also be customized based on customer specifications.
Can quartz tubes be assembled into complex structures?
Yes. Through precision quartz welding and fabrication, multiple quartz components can be joined into complete assemblies for furnaces, reactors, laboratory equipment, and OEM systems.
How can I request a quotation?
Simply send us your drawing, dimensions, material requirements, quantities, and application details. Our engineering team will review your project and provide manufacturing recommendations along with a detailed quotation.
Request a Quote for Custom Clear Fused Quartz Tubes
Whether you require a single prototype, a replacement part, or ongoing OEM production, our team is ready to support your project with precision-manufactured clear fused quartz tubes.
To help us prepare an accurate quotation, please provide:
Technical drawing or sample (if available)
Outside diameter, inside diameter, wall thickness, and length
Required machining or fabrication details
Quantity
Application or operating environment
Any special inspection or packaging requirements
Our engineers will review your requirements and recommend the most suitable manufacturing solution based on your design and application.
Q: What is fused quartz glass?
Q: What quartz glass products do you manufacture?
Q: Can you manufacture custom quartz components according to drawings?
Q: Which industries use your quartz products?
Q: What is the maximum operating temperature of fused quartz?
Q: What machining services do you provide?
Product Inquiry
